![Removing Hood With](images/remove_hood.jpg)
One man hood removal with Garagemate tool
|
![Slant Six turbo](images/slant_six_turbo_sml.jpg)
Out with the old... |
![Clip disassembled](images/clip_removed_sml.jpg)
Clip disassembled
|
![Cam Card](images/cam_card.jpg)
Solid Lifter Cam Specs |
![Dodge Dart Seneca Dash Removed](images/dash_sml.jpg)
Dash Removed for restoration, and wiring throughout |
|
![Media Blasted Parts](images/blasted_parts.jpg)
Misc. parts media blasted and ready for epoxy primer |
![Aluminum Dual Quad Manifold for 318 Poly](images/dual_quad_sml.jpg)
Aluminum Dual Quad Manifold for 318 Poly
|
![Assembled Polyspherical Head](images/assembled_head_sml.jpg)
Assembled head
|
![Dual valve springs single groove locks](images/valvetrain_sml.jpg)
Dual Valve Springs Single Groove Locks
|
![Intake Port](images/port2_sml.jpg)
Intake port
|
![Exhaust Port](images/port_sml.jpg)
Exhaust Port
|
![Manton Pushrods](images/pushrods_sml.jpg)
Manton Pushrods
|
![Scat 4.00 stroker crankshaft](images/crank_sml.jpg)
Scat 4.00 stroker crankshaft
|
![Assembled short block front](images/windage_tray_sml.jpg)
|
![Assembled short block rear](images/windage_sml.jpg)
|
![Assembled short block with oil pan](images/oilpan_sml.jpg)
|
![2.02 1.60 stainless steel valves](images/chambers_sml.jpg)

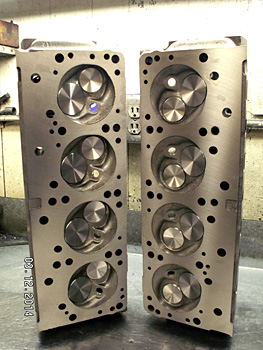

2.02" / 1.60" Stainless Steel Valves
|
![Assembled Dual Quad 318 Poly Stroker 390 CI](images/3-20-14-Dual-Quad-Poly_sml.jpg)
Assembled Dual Quad 318 Poly Stroker - 390 Cubic Inches
|
![](images/3-20-14-Dual-Quad-Poly2_sml.jpg)
|
![](images/3-20-14-Dual-Quad-Poly3_sml.jpg)
|
![727 Torqueflight Manual valve body](images/crt_727_sml.jpg)
727 Torqueflight Manual valve body
with tailshaft for GearVendors over drive |
![Dash Shell Black](images/dash_black_sml.jpg)
Dash Shell
|
![Dash with switches and bezel](images/dash2_sml.jpg)
Dash with switches and bezel
|
![](images/dash_switches_sml.jpg)
|
![](images/instruments_back_sml.jpg)
Underside of instruments all of the gauges
looked to be in great shape.
|
![](images/instruments_close_sml.jpg)
Gas gauge
|
![](images/black_parts_sml.jpg)
A few parts in SEM hotrod black
|
![](images/bare_firewall_sml.jpg)
Firewall down to bare metal
|
![](images/boxed_crossmember_sml.jpg)
Boxed cross members
|
![Boxed lower control arms](images/lower_control_sml.jpg)
Boxed lower control arms
|
![Shock tube](images/new_tube_sml.jpg)
Shock tube
|
![Epoxy primered firewall](images/epoxy_firewall_sml.jpg)
PPG
Epoxy primer on firewall
|
![](images/epoxy_firewall2_sml.jpg)
|
![Epoxy primer on subframe](images/frame_primer3_sml.jpg)
PPG Epoxy primer on subframe
|
![Epoxy primer on subframe passenger side](images/frame_primer2_sml.jpg)
|
![Hot rod flatz satin acrylic urethane](images/frame_black_sml.jpg)
I painted the frame with "Hot Rod Flatz"
Satin Black Acrylic Urethane
|
![Frame painted hotrod flatz black](images/frame_black2_sml.jpg)
|
![Alpine installed in Seneca no cutting.](images/alpine_sml.jpg)
No cutting on the car to install the Alpine.
Just a bit of grinding on the Alpine's case. I have since
replaced the volume knob with a knob that matches the
rest of the dash switches.
|
![Rear of Alpine installation](images/alpine_rear_sml.jpg) |
![Painted lower control arms](images/control_arms_black_sml.jpg)
Blasted and painted
|
![Working on the Seneca](images/rick_working_sml.jpg)
At work in the garage
|
![Firewall painted with PPG Acrylic Urethane](images/white_firewall_sml.jpg)
Finally back to white. I used PPG Acrylic Urethane
|
![Close up of firewall](images/firewall_close_sml.jpg)

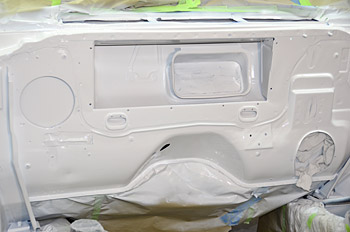

Closeup of firewall
|
![](images/unwrapped2-sml.jpg)
Finally unwrapped
|
![](images/unwrapped_sml.jpg)
Now the re-assembly begins
|
![Autometer Cruiser AD gauges. Voltmeter, Water Temperature, Oil Pressure](images/gauges_sml.jpg)
Autometer Cruiser AD gauges |
![Firewall reassembly](images/1D7_4340_sml.jpg)
Firewall reassemby
|
![](images/firewall_close2_sml.jpg)
|
![Throttle bracket](images/throttle_bracket_sml.jpg)
|
![Heater firewall plate](images/heater_firewall_sml.jpg)
|
![](images/front_brakeline_sml.jpg)
|
![Scarebird Disc Brake Conversion](images/front_right_brake_sml.jpg)
Scarebird disc brake conversion
|
![](images/engine_installation_sml.jpg)

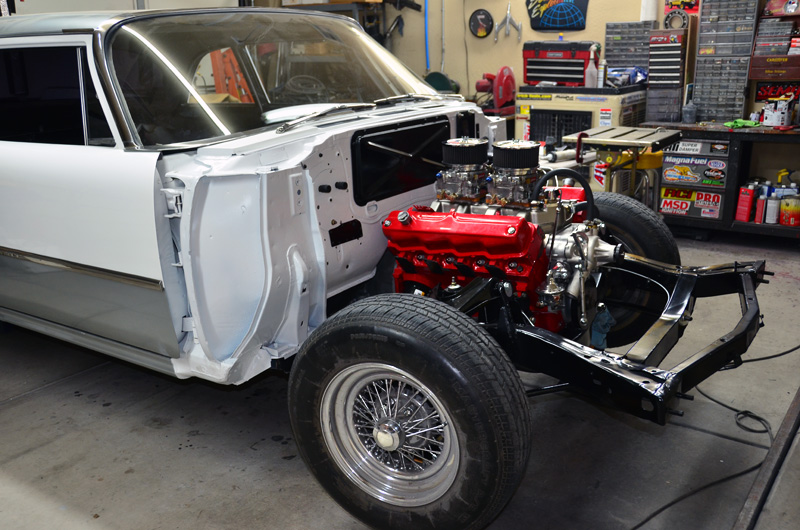

318 Poly Engine Installation
|
![](images/engine_installed_sml.jpg) |
![Dual Quad 318 poly installed](images/engine_installed2_sml.jpg)

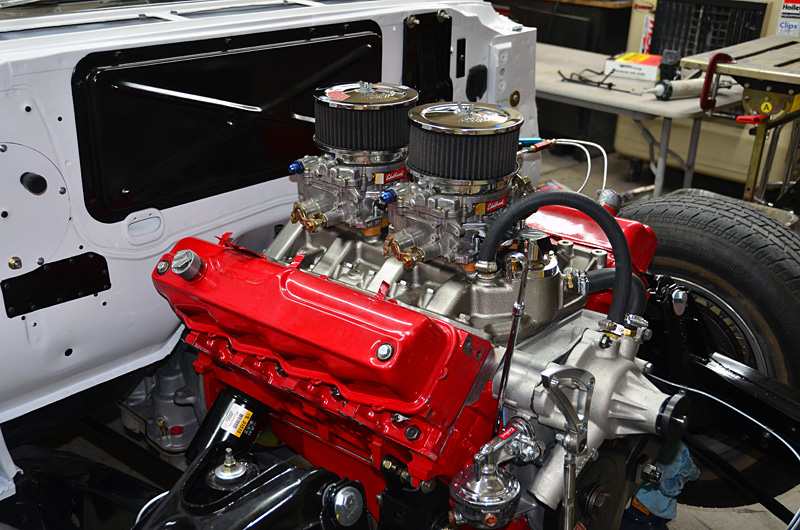

Dual quad 318 poly installed |
![Dash Wired](images/dash_wired_sml.jpg)
Dash assembled and wired
|
![](images/1D7_4472_sml.jpg)
I |
![](images/engine_angle_sml.jpg)
I purchased a March pulley set that included an A/C
bracket. The nice thing about their set is that you can run just the
alternator by itself until you are ready to ad d the A/C. The brackets are
entirely seperate, and use a seperate serpentine belt.
|
![](images/carbs_sml.jpg)
500CFM Edelbrock Carbs
|
![](images/engine_right_sml.jpg)
The MSD Blaster2 coil and MSD6 box were relocated inside the
car
|
![](images/dash_in2_sml.jpg)
7 months into my 2 month project, the dash is finally back
in
|
![1960 Doge Dart Dash](images/instrments_gauges_sml.jpg)
|
![B&M Quicksilver shifter](images/shifter_sml.jpg)
Hurst Quicksilver shifter operating a CRT (Cope Racing
Transmission) SB A 727 reverse pattern manual valve body transmission.
Behind the 727 is a Gear Vendor overdrive unit |
![Autometer Cruiser AD Water Temp, Oil Pressure and Volt meters](images/shifter2_sml.jpg)
Autometer Cruiser AD Water Temp, Oil Pressure and Volt
meters. |
![Strange S60 S-trac differential 2004 Cobra rear disc brakes](images/s60_sml.jpg)
Strange Engineering S-60 with 2004 Cobra rear disc brakes,
S-Trac differential and 4.10:1 gears. Leaf springs are by Espo. Mopar
pinion snubber is not visible. |
![1960 Dodge Dart Seneca at Old Time Gas Station - Wickenburg, AZ.](../images/rick_benji_sml.jpg)
At "The Station" in Wickenburg, AZ
|
![1960 Dodge Dart Seneca](../images/1D7_4558_sml.jpg)
|
![](../images/1D7_4557_sml.jpg)
"I love it when a plan comes together"
|
![1960 Dodge Dart with Strange S60](../images/1D7_4564_sml.jpg)
|
|
|
